Hydraulic pit jacks for the modern commercial vehicle workshop

Fuchs Hydraulik manufactures hydraulic pit jacks for the modern commercial vehicle workshop. Available in 2 types, traditional “hanging” models supported on pit rails or floor mounted models where pit rails can’t be used. Pit jacks can be manual, pneumatic or electric on operation. As a German company with headquarters and production in Rhineland-Palatinate, with our products we stand for quality “Made in Germany”.

Quality, Service and Equipment

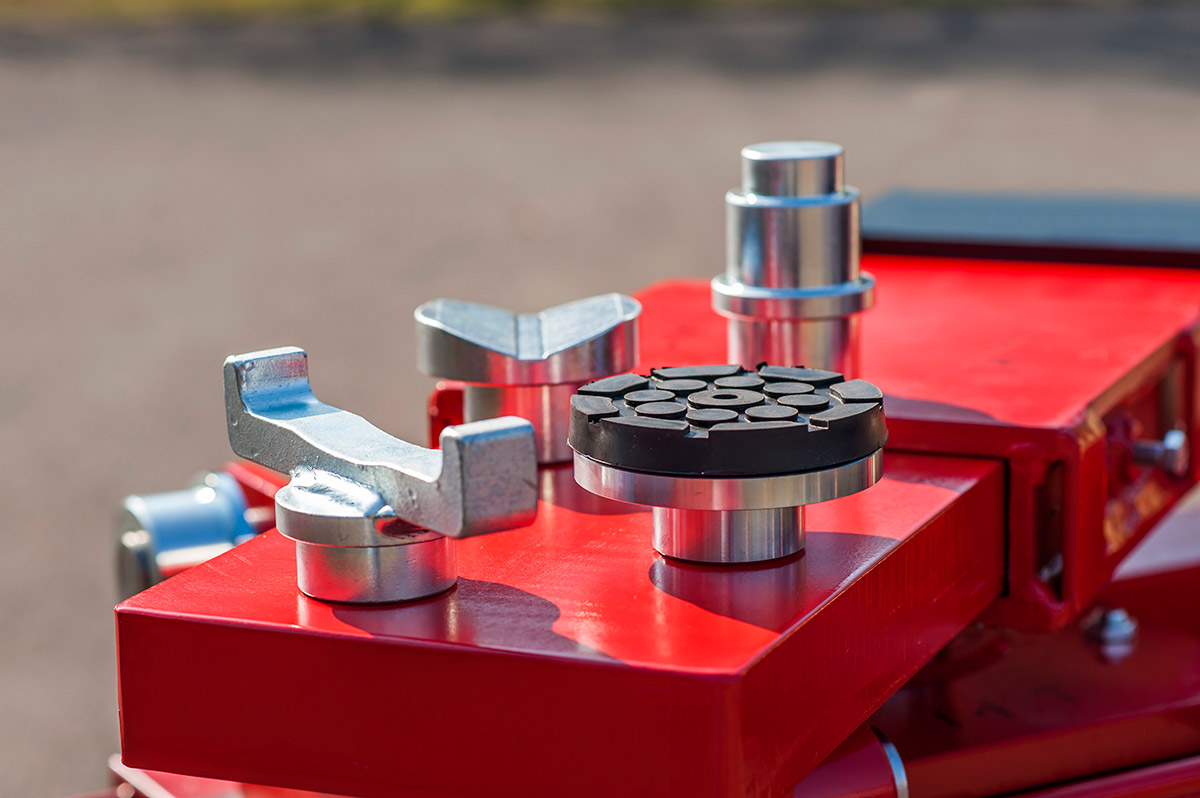

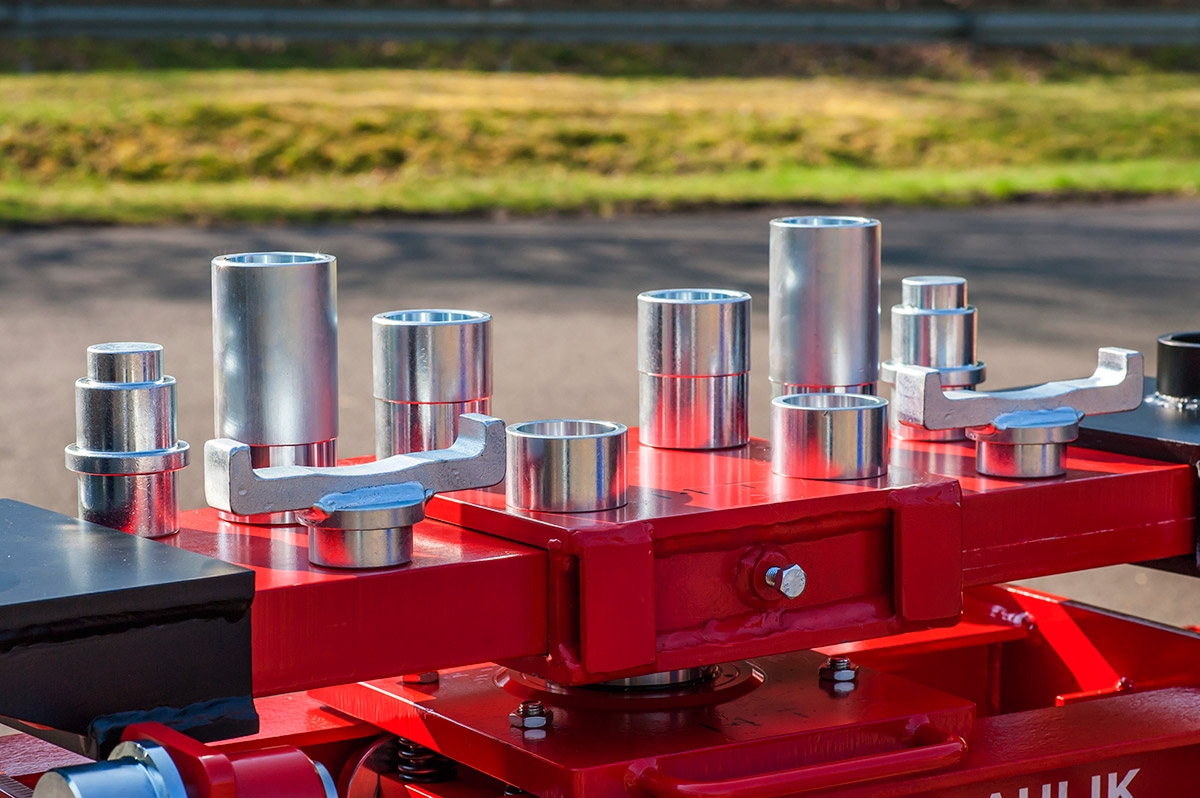

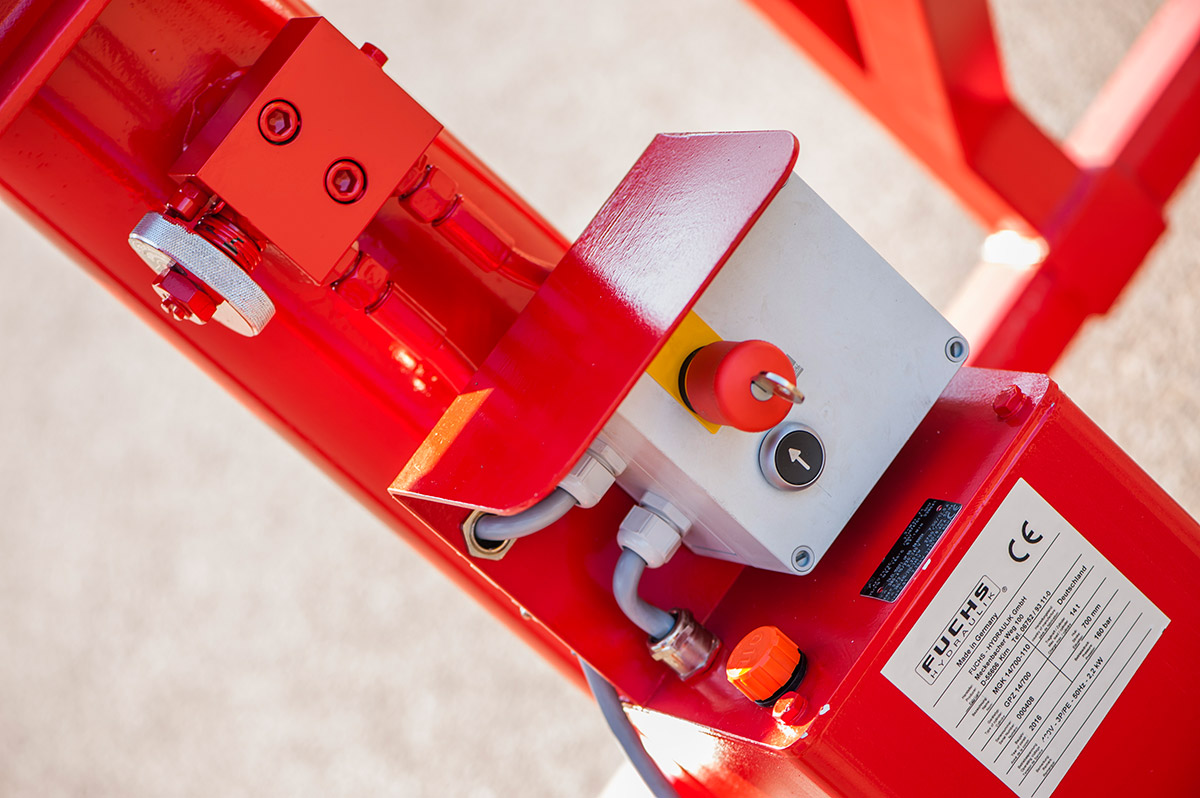

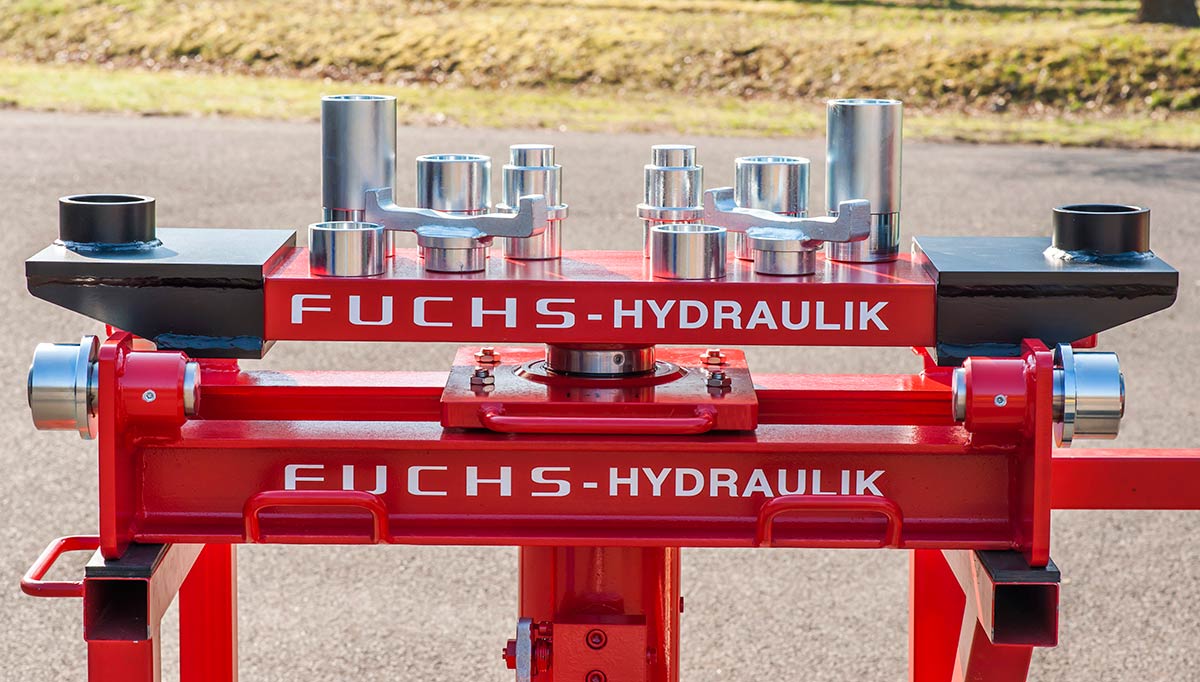

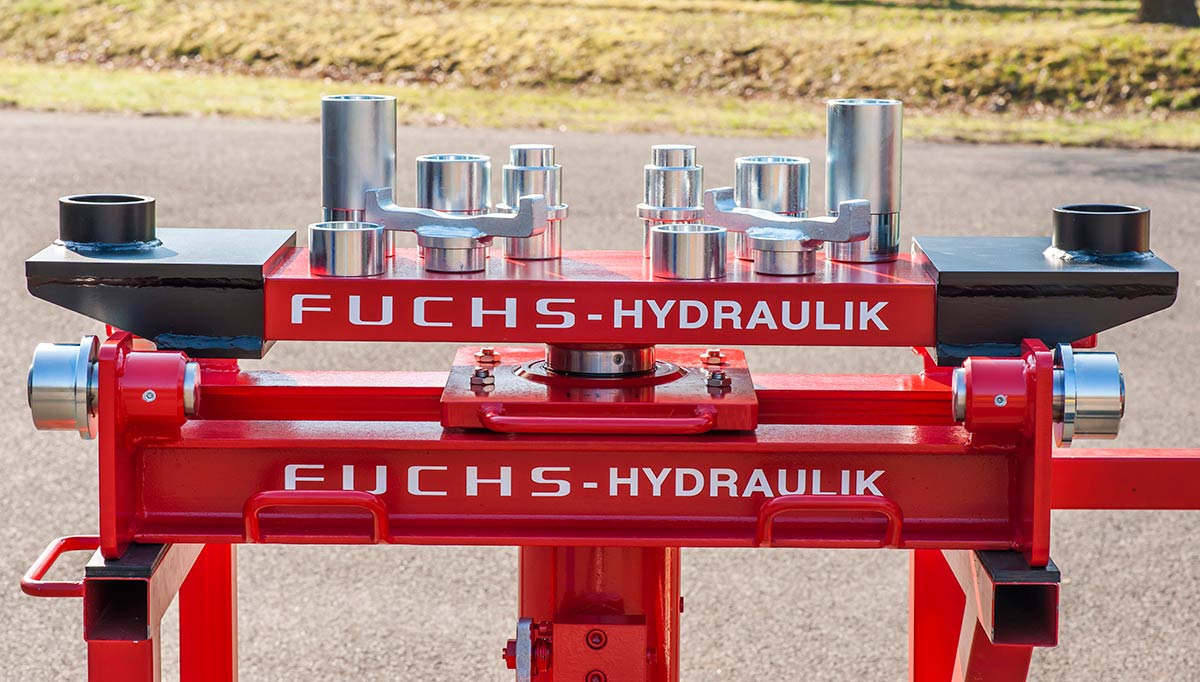

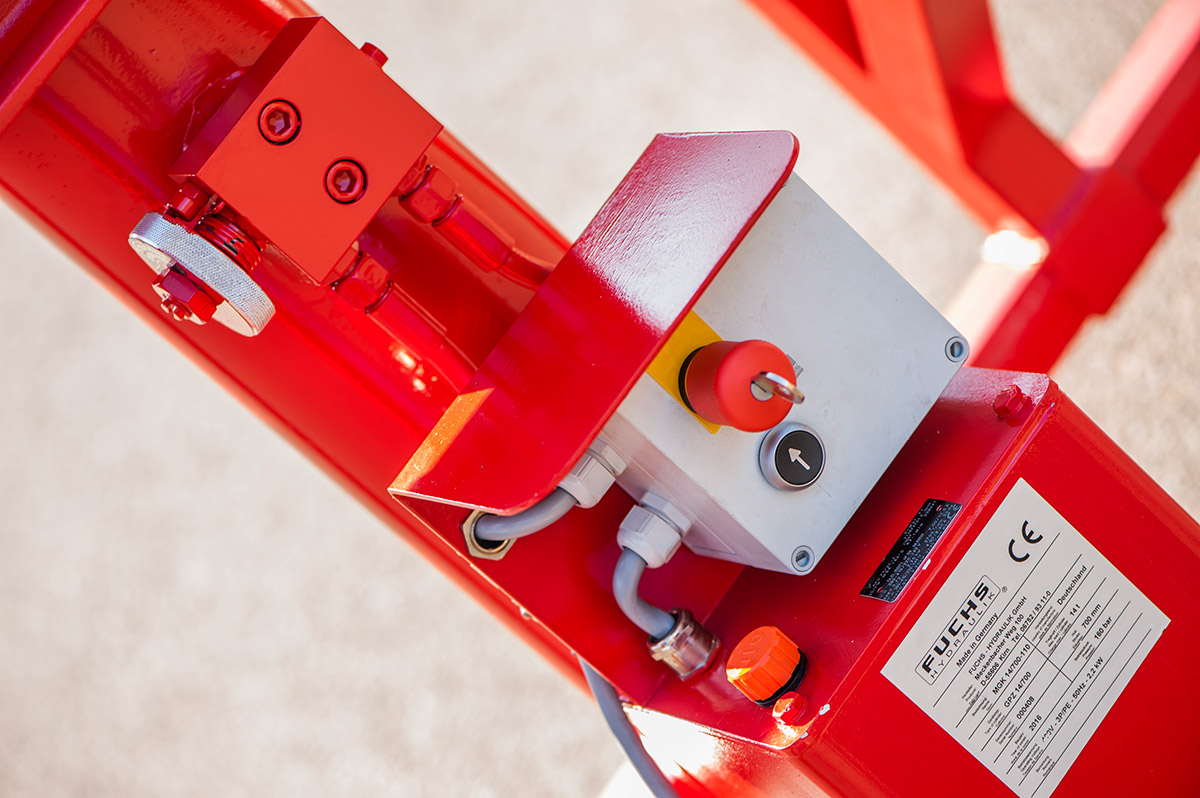

All our in-house manufactured jacks are CE certified and low-maintenance. As standard equipment we use on polished, hard chrome-plated pistons and robust piston guides. Our chassis are designed to be extremely rigid and are custom-made to your pit dimensions without additional cost. The delivery of the commercial vehicle pit jack is fully assembled and ready to use. A support plate is included in the scope of delivery. We offer supports with commercial vehicle-specific connection devices available as accessories.

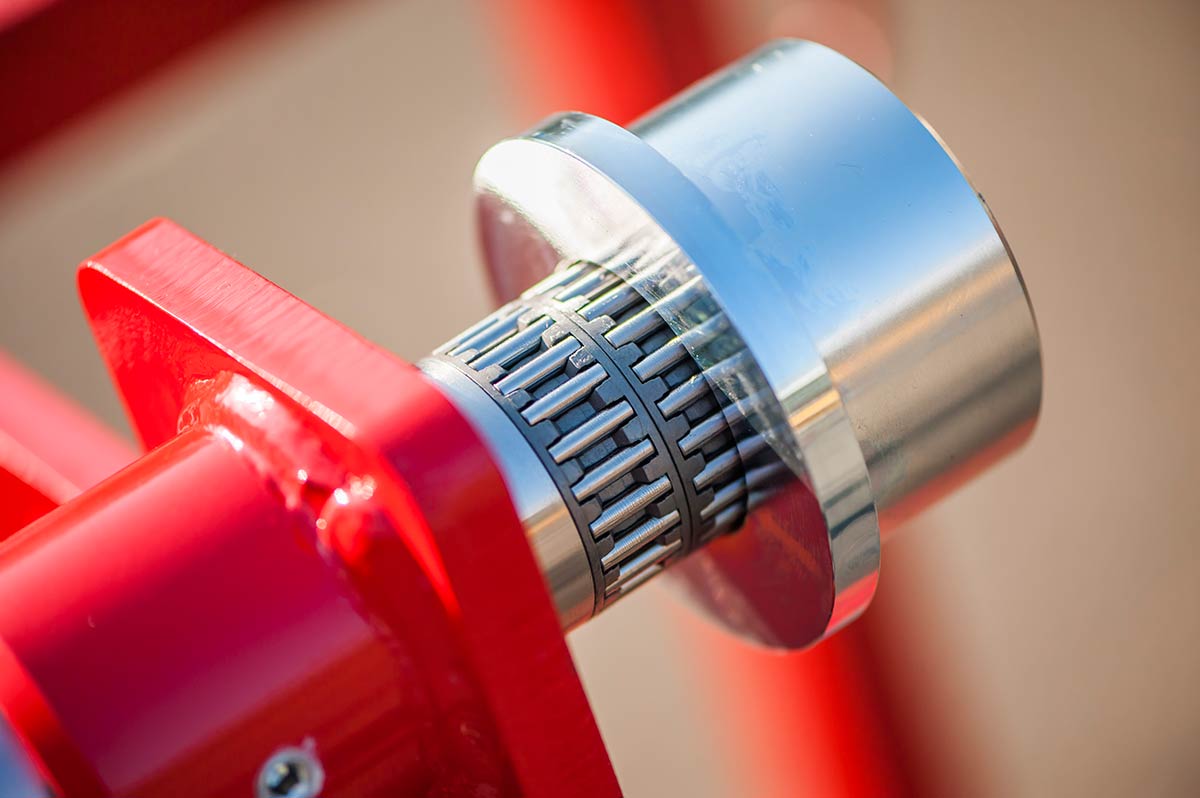

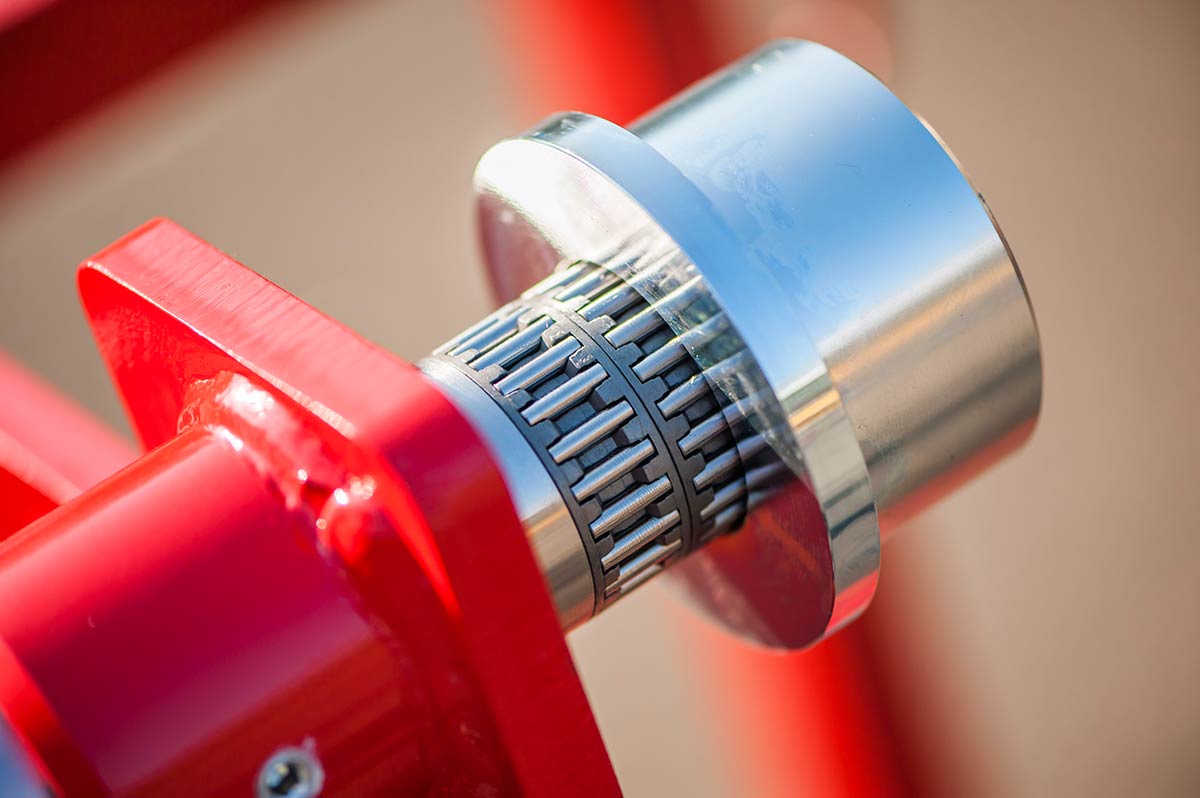

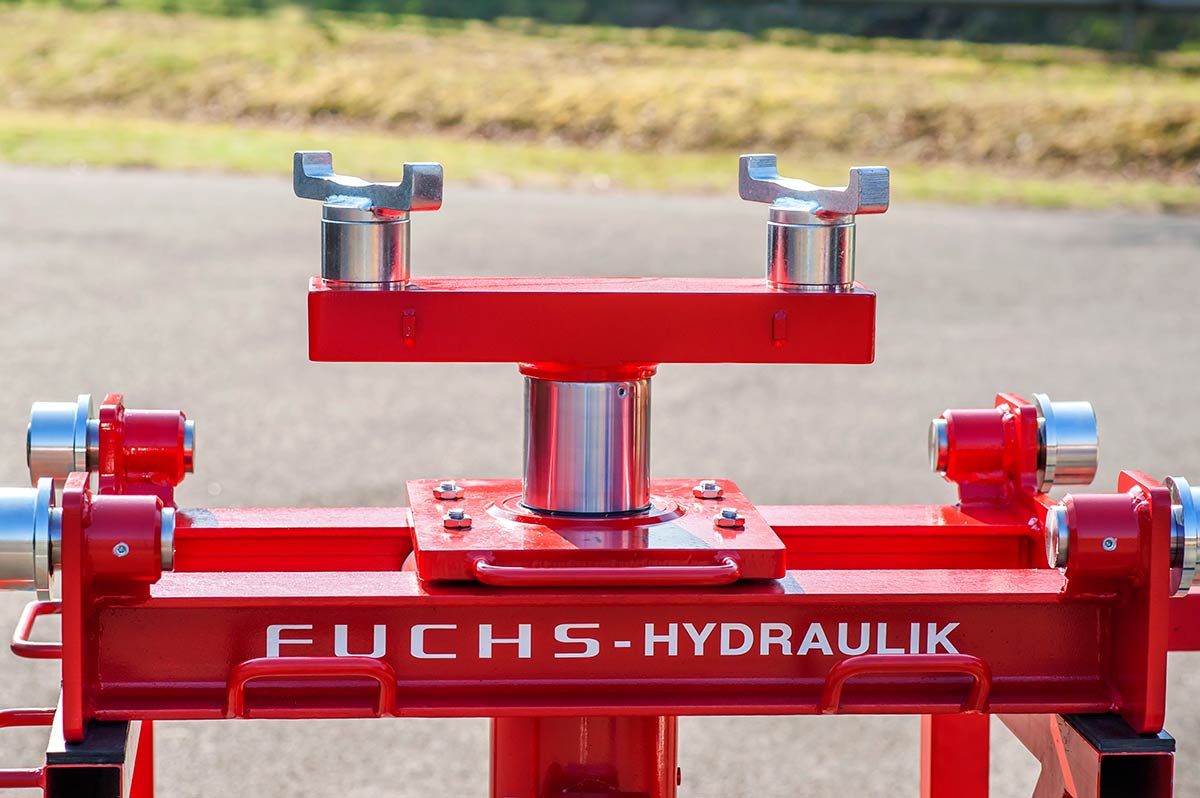

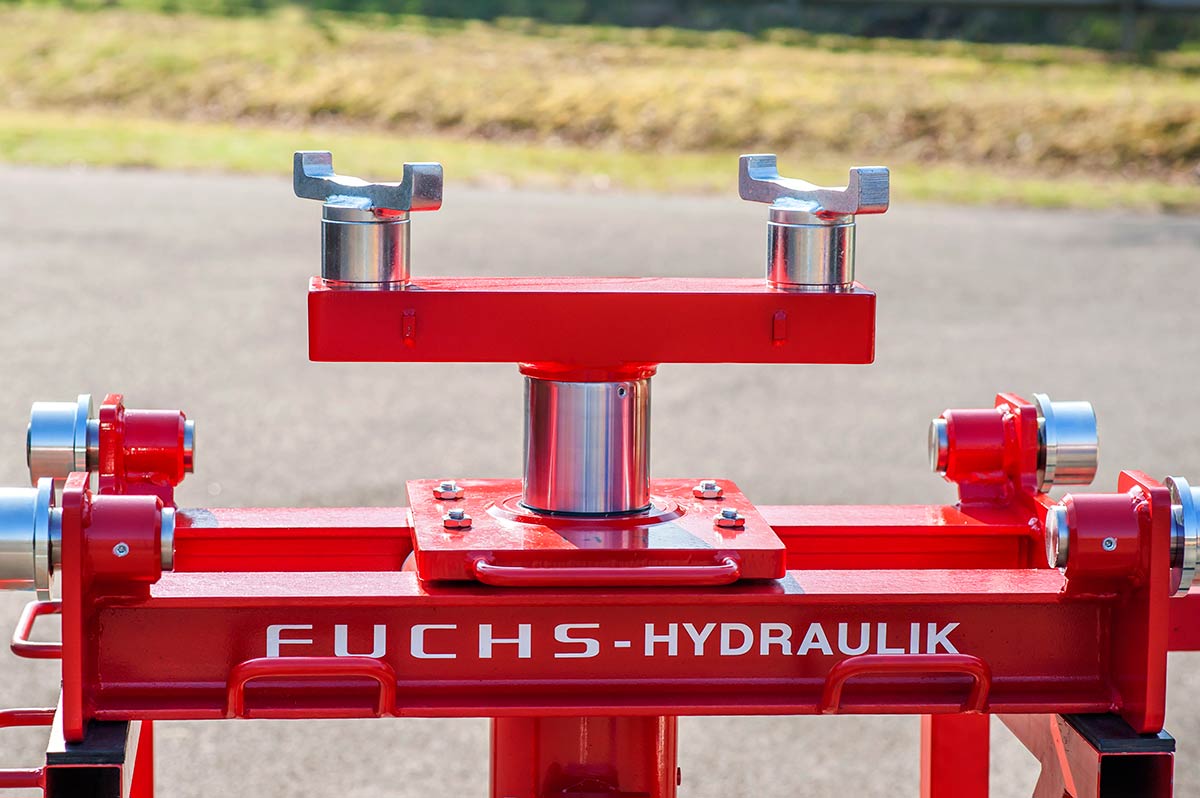

Needle bearing rollers are used in the hanging models, ensuring smooth movement on the pit rail. All versions are equipped with automatic locking under load. Fuchs Hydraulik pit jacks are based on the “plunger” principle. In these systems the piston is permanently surrounded by oil and thus protected against corrosion. No additional support systems are required during the execution of common servicing work using Fuchs Hydraulik pit jacks.

Safety aspects

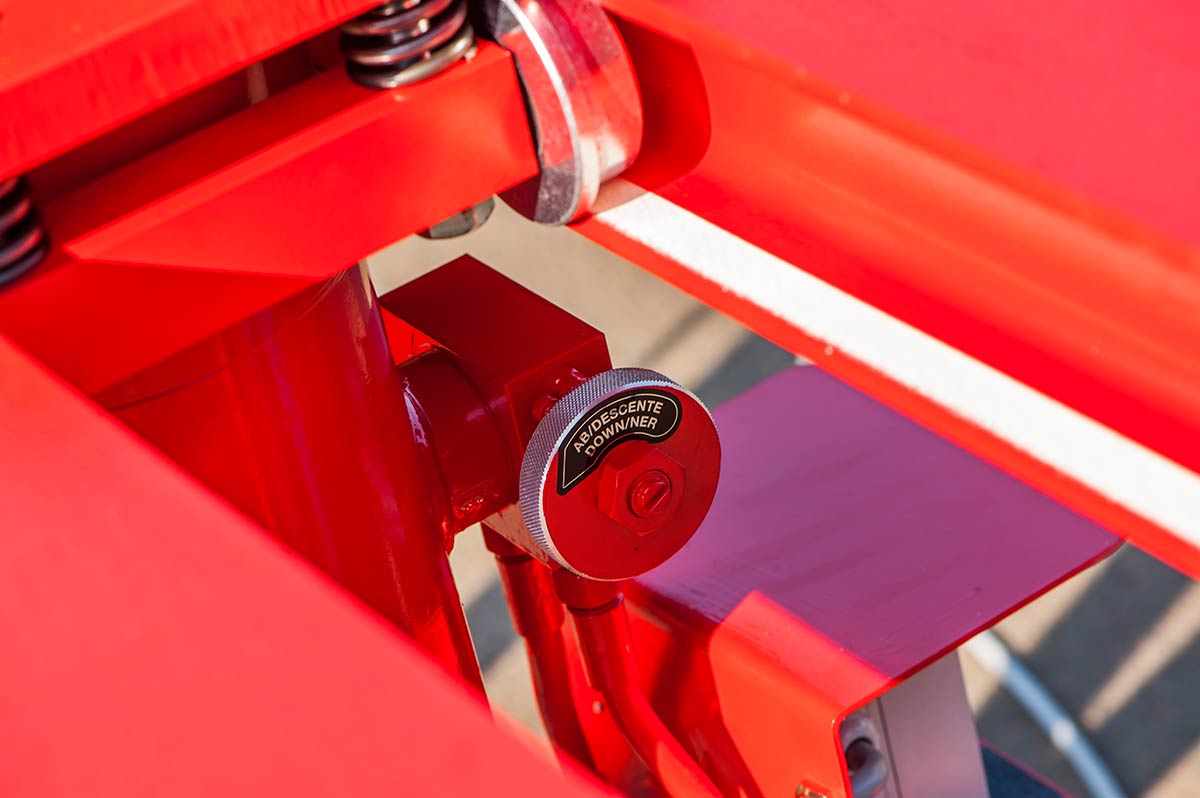

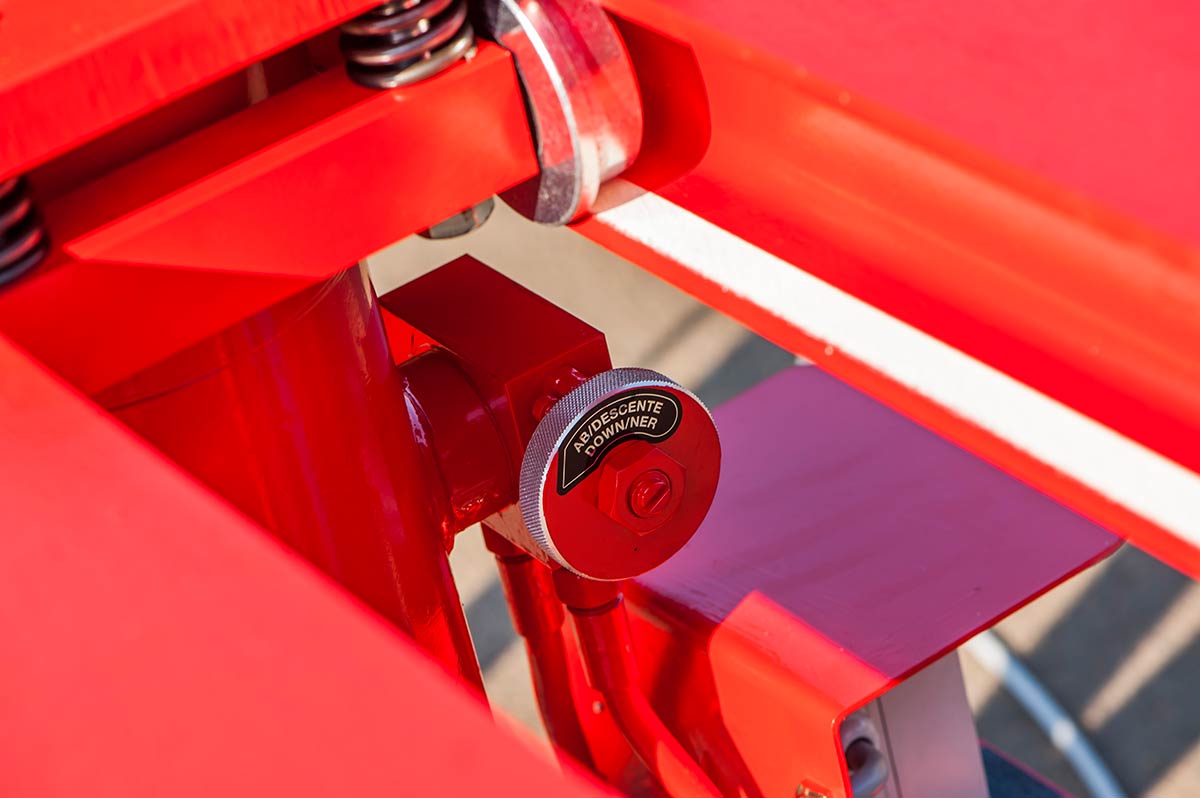

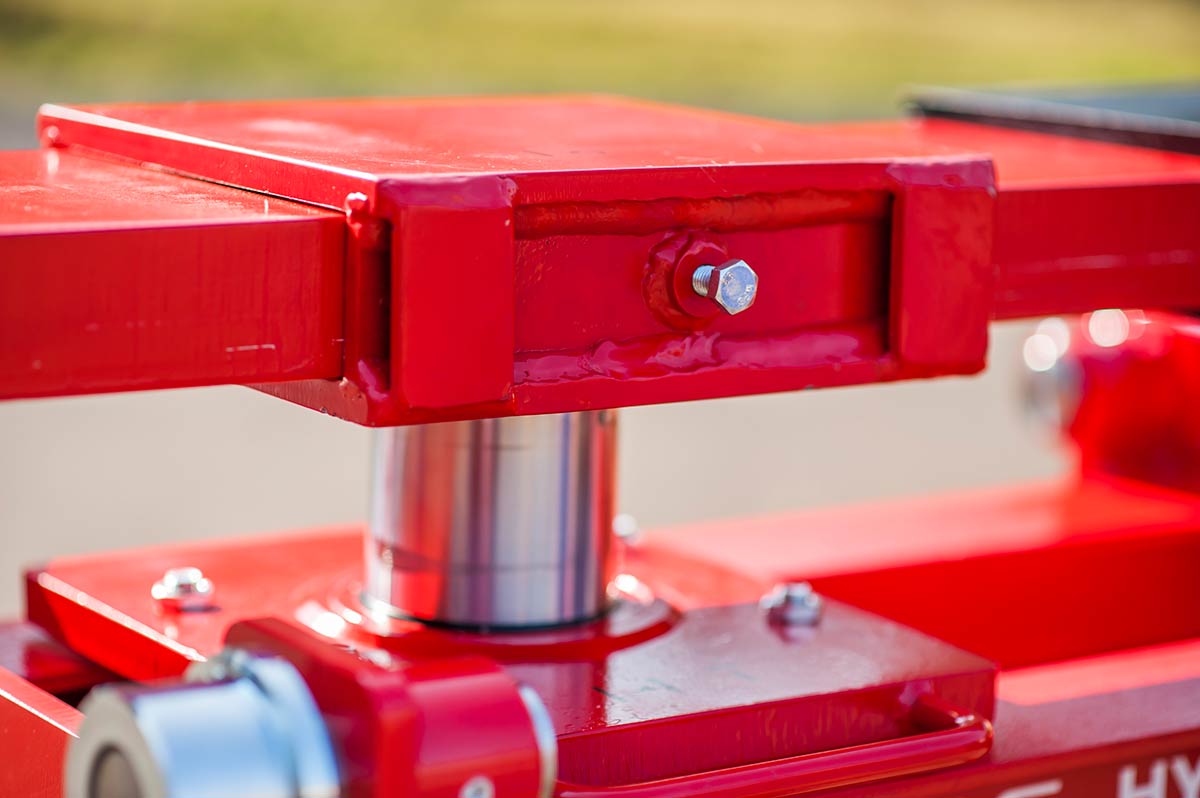

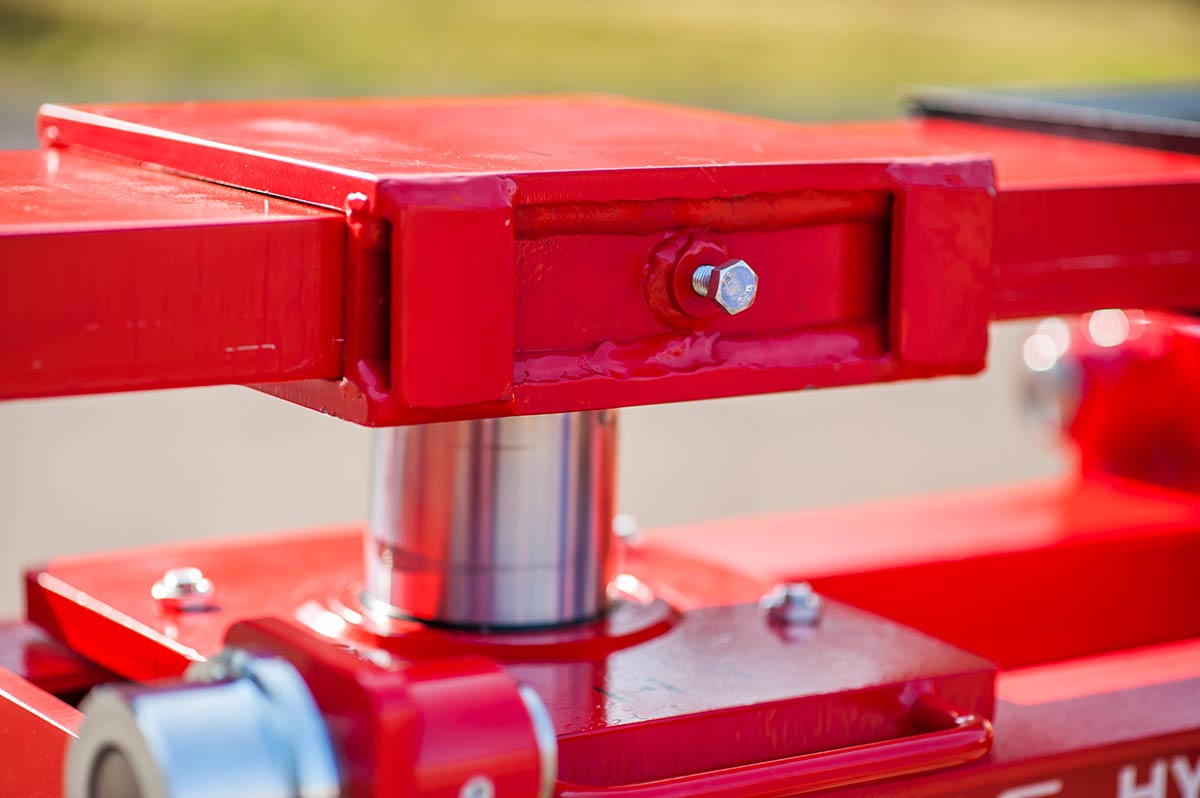

The lifting rams of our jacking units can be moved transversely allowing asymmetrical distributed loads to be lifted safely. Generously dimensioned pistons of solid material guarantee maximum stability without the use of additional support systems. The lowering of the load takes place via a continuously variable manual flow valve, which closes automatically on release.

Features

CE certified  ·  Made in Germany  ·  very sturdy  ·  rigid chassis, manufactured according to the pit dimensions  ·  low maintenance  ·  long stroke  ·  laterally adjustable lifting units  ·  massive piston guides  ·  precise lowering  ·  maximum headroom in the pit  ·  the vehicle can remain on the jack during the repair without additional support

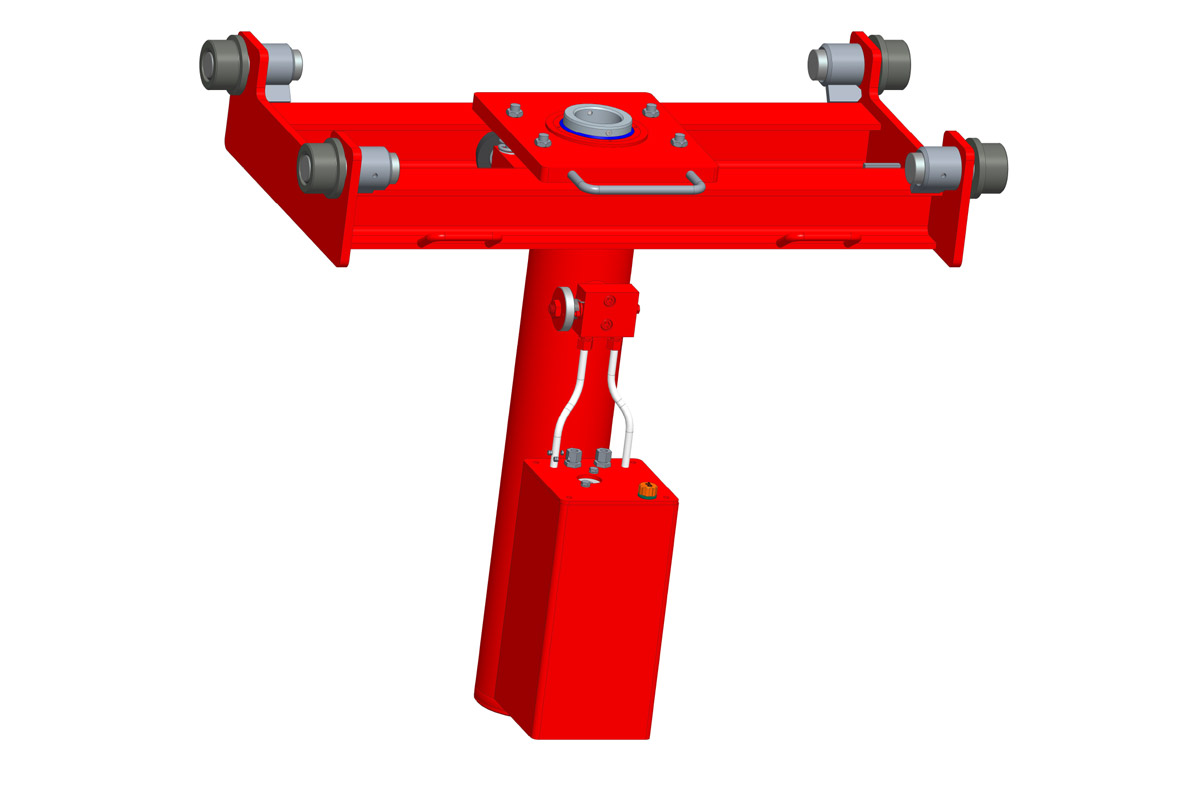

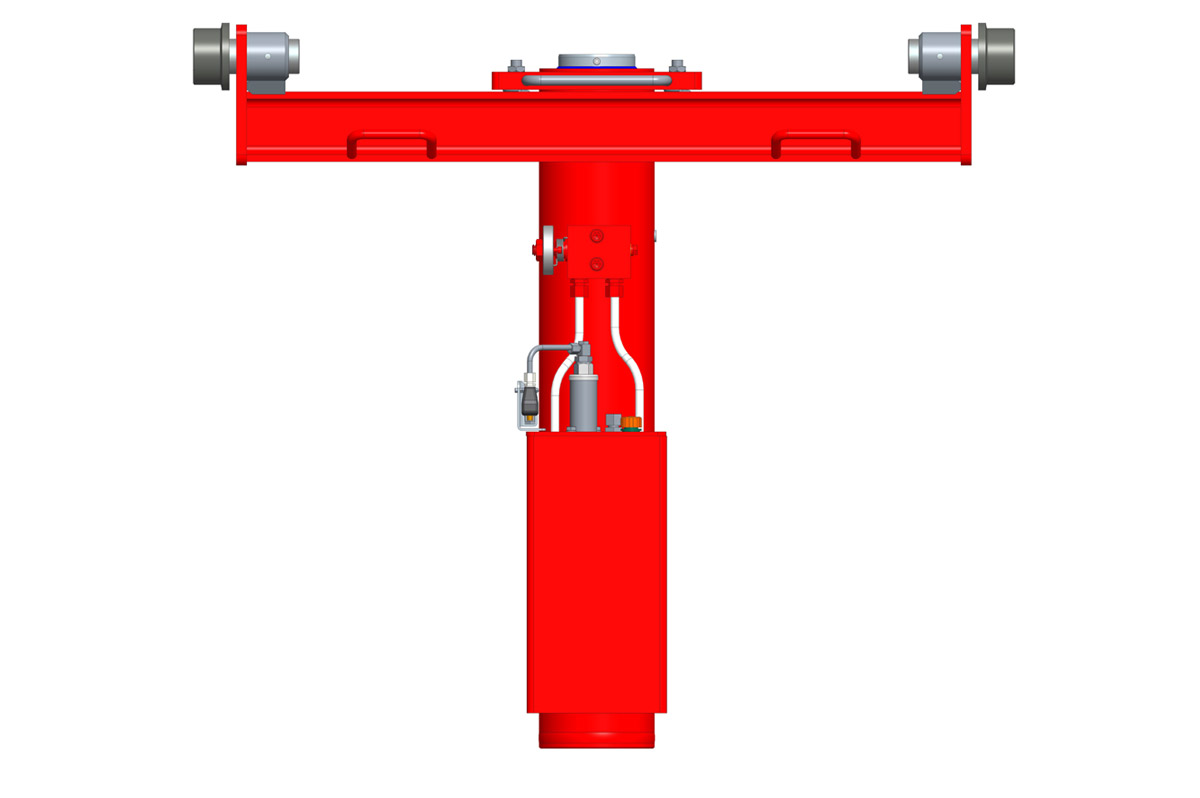

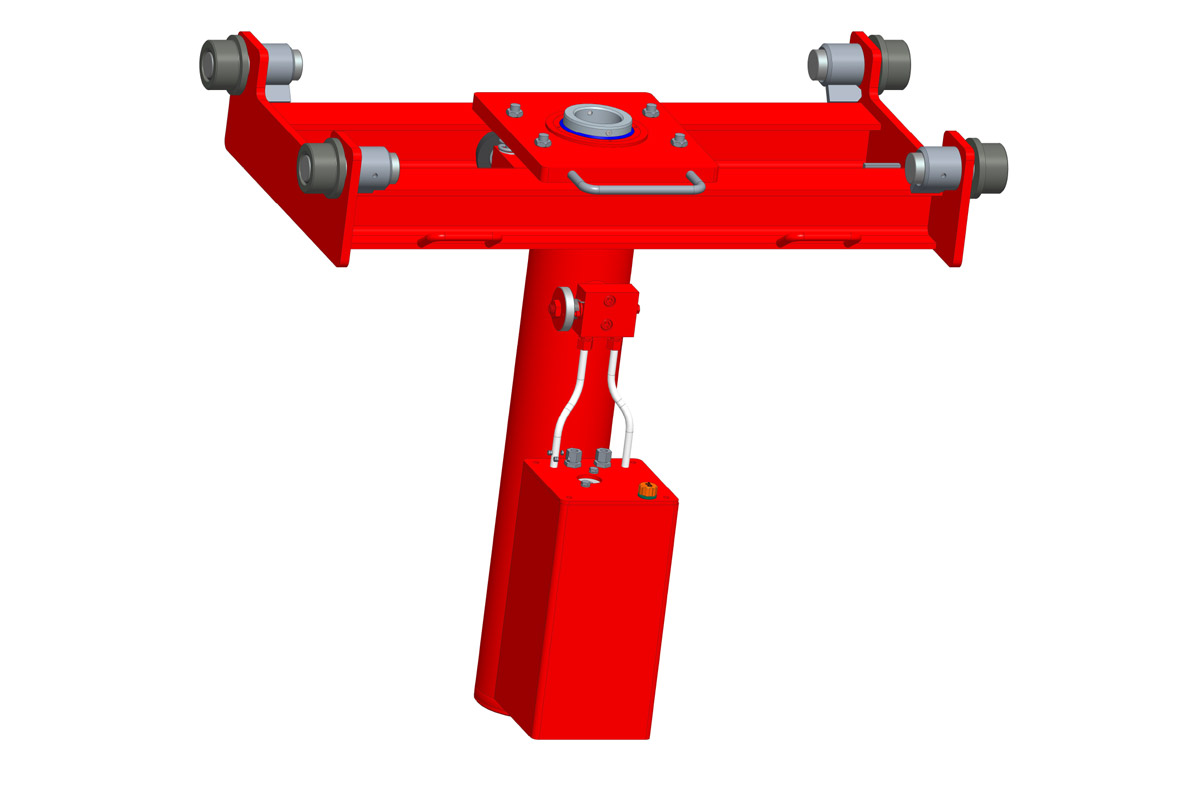

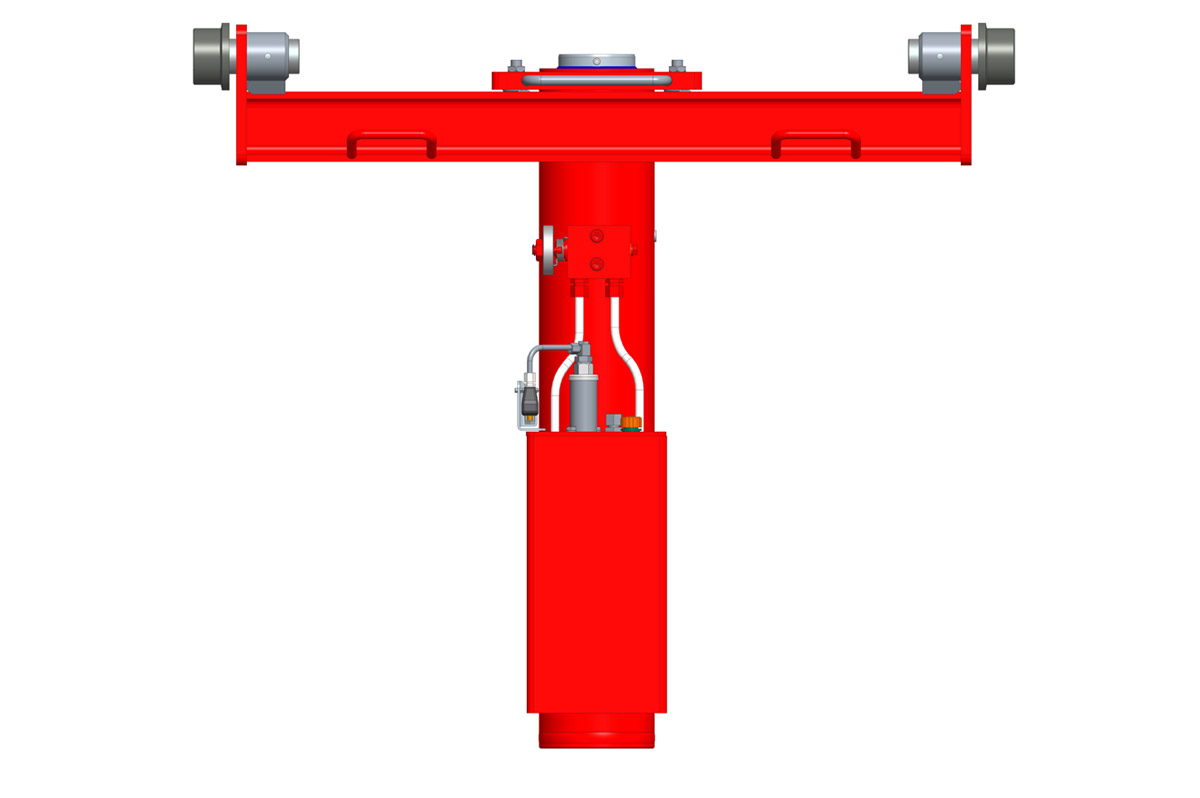

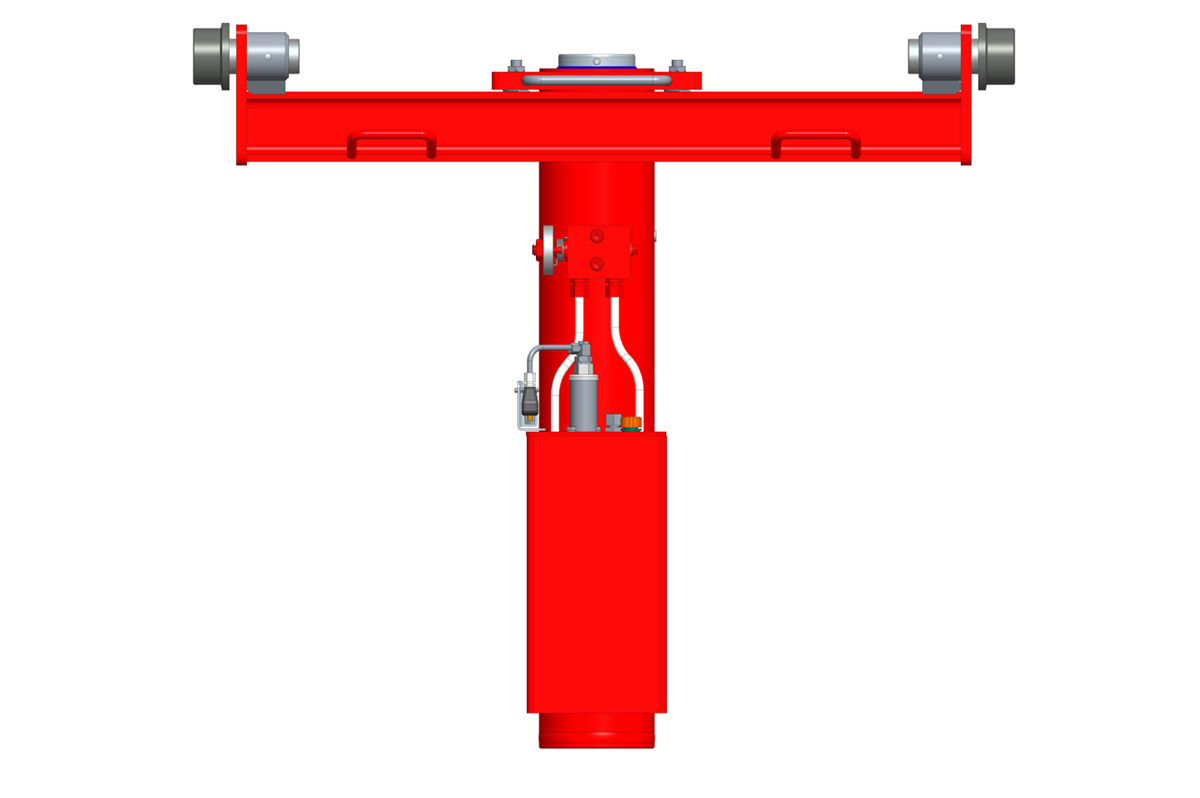

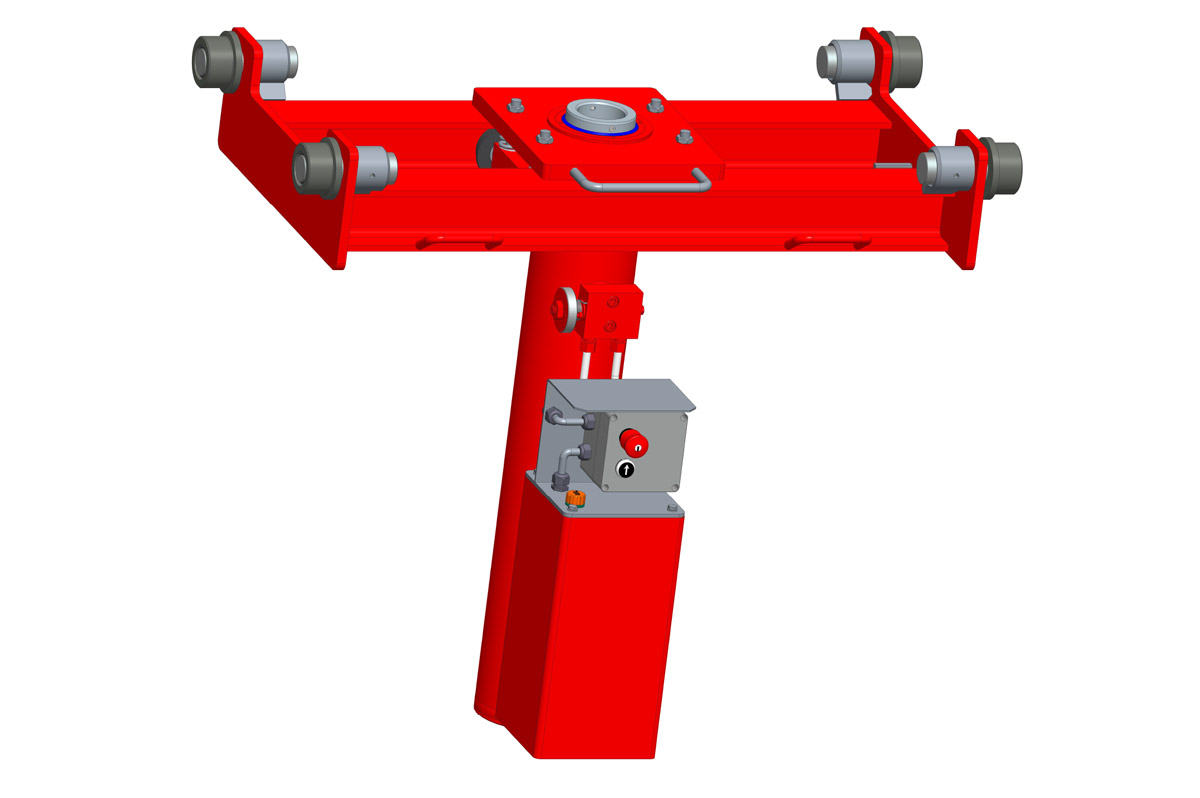

Hanging pit jack

HGH 12/750-90

Capacity 12t
Stroke 750mm
Piston ø 90mm
Operation Manually hydraulic
Chassis manufactured to pit measurements
Scope of delivery incl. support brackets
Art.-No. 8.415.000

LGH 12/750-90

Capacity 12t
Stroke 750mm
Piston Ø 90mm
Operation Air hydraulic
Chassis manufactured to pit measurements
Air connection 6-10bar
Scope of delivery incl. support brackets, 6m air hose w/connection
Art. No. 8.416.000

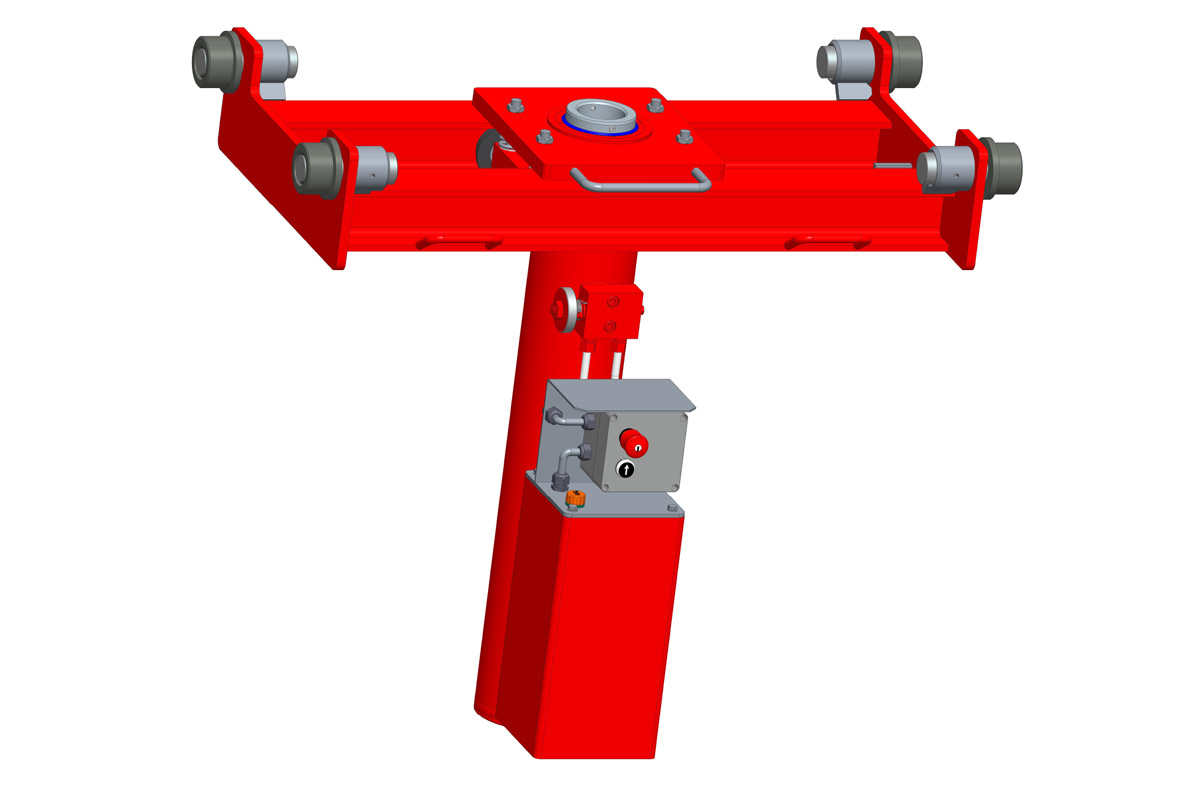

MGK 12/750-90

Capacity 12t
Stroke 750mm
Piston Ø 90mm
Operation Electro-hydraulic
Chassis manufactured to pit measurements
Electrical connection 400V
Scope of delivery incl. support brackets, 6m cable w/CEE Euro connection
Art. No. 8.416.000

LGH 14/700-110

Capacity 14t
Stroke 700mm
Piston Ø 110mm
Operation Air hydraulic
Chassis manufactured to pit measurements
Air connection 6-10bar
Scope of delivery incl. support brackets, 6m air hose w/connection
Art. No. 8.422.000

MGK 14/700-110

Capacity 14t
Stroke 700mm
Piston Ø 110mm
Operation Electro-hydraulic
Chassis manufactured to pit measurements
Electrical connection 400V
Scope of delivery incl. support brackets, 6m cable w/CEE Euro connection
Art. No. 8.423.000

LGH 20/600-120

Capacity 20t
Stroke 600mm
Piston Ø 120mm
Operation Air hydraulic
Chassis manufactured to pit measurements
Air connection 6-10bar
Scope of delivery incl. support brackets, 6m air hose w/connection
Art. No. 8.480.002

MGK 20/600-120

Capacity 20t
Stroke 600mm
Piston Ø 120mm
Operation Electro-hydraulic
Chassis manufactured to pit measurements
Electrical connection 400V
Scope of delivery incl. support brackets, 6m cable w/CEE Euro connection
Art. No. 8.480.001

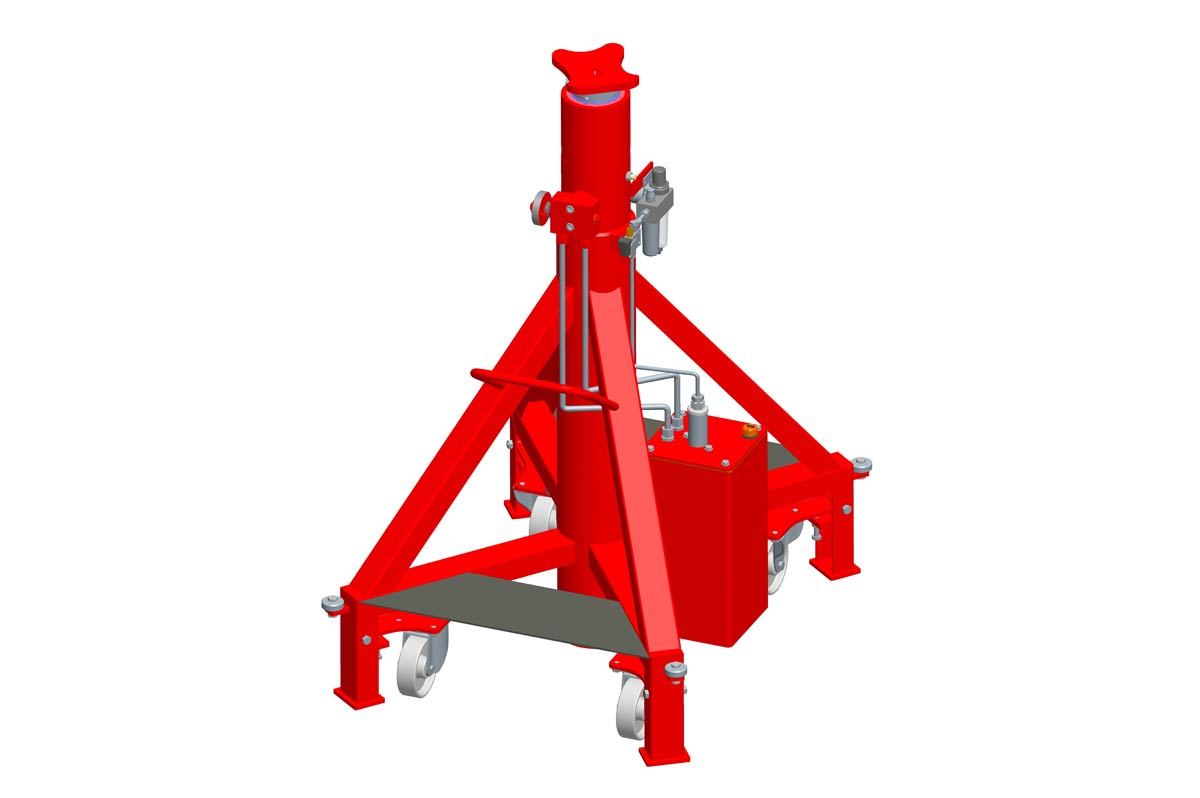

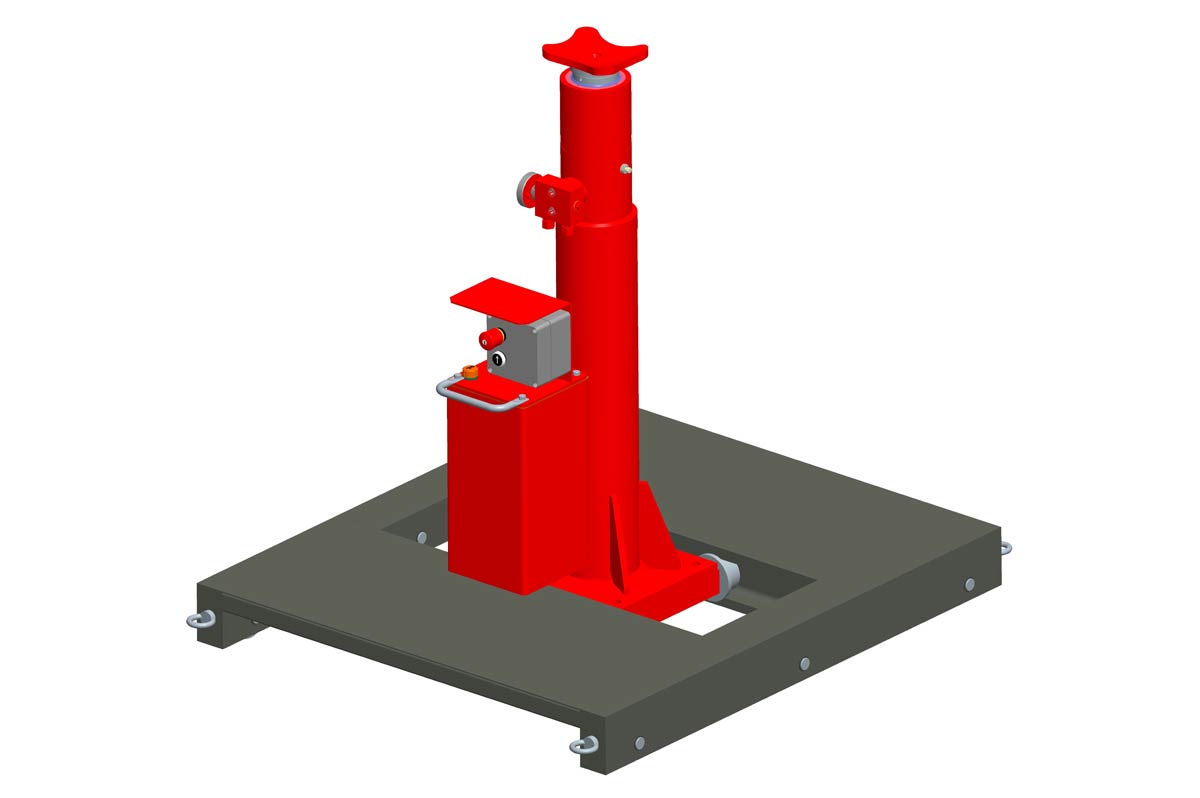

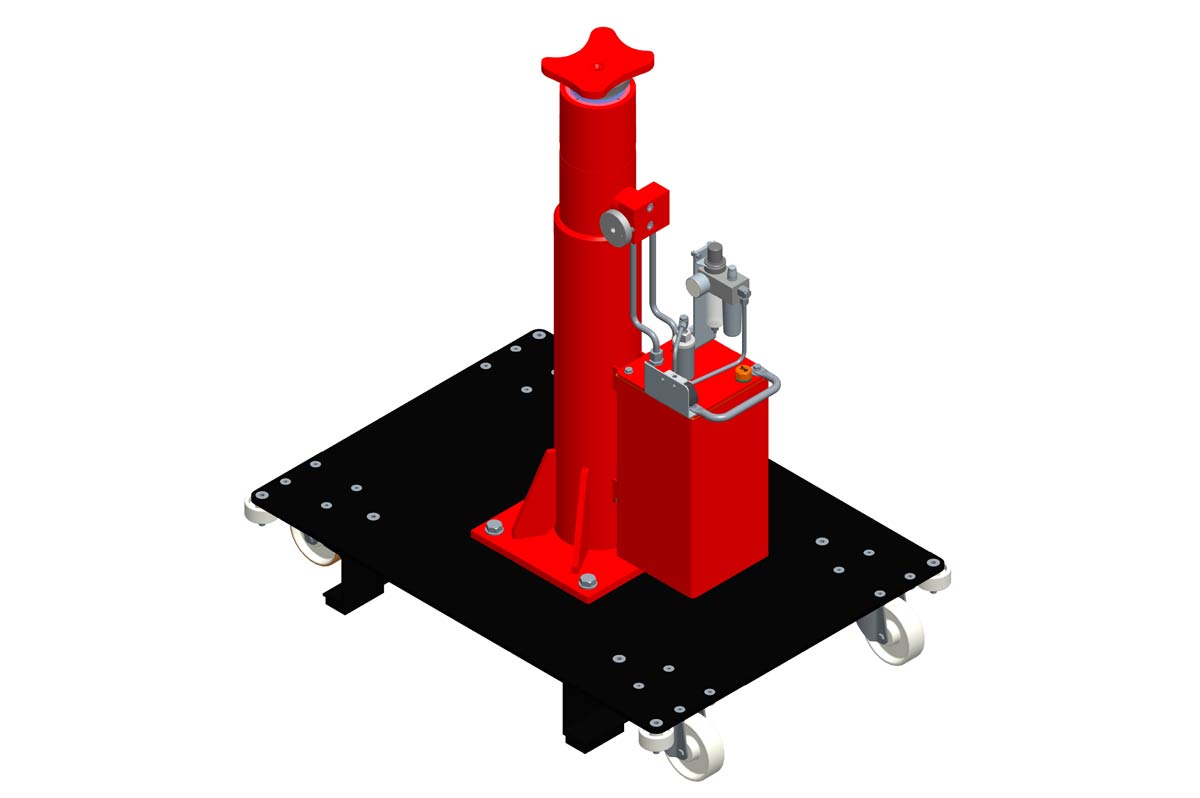

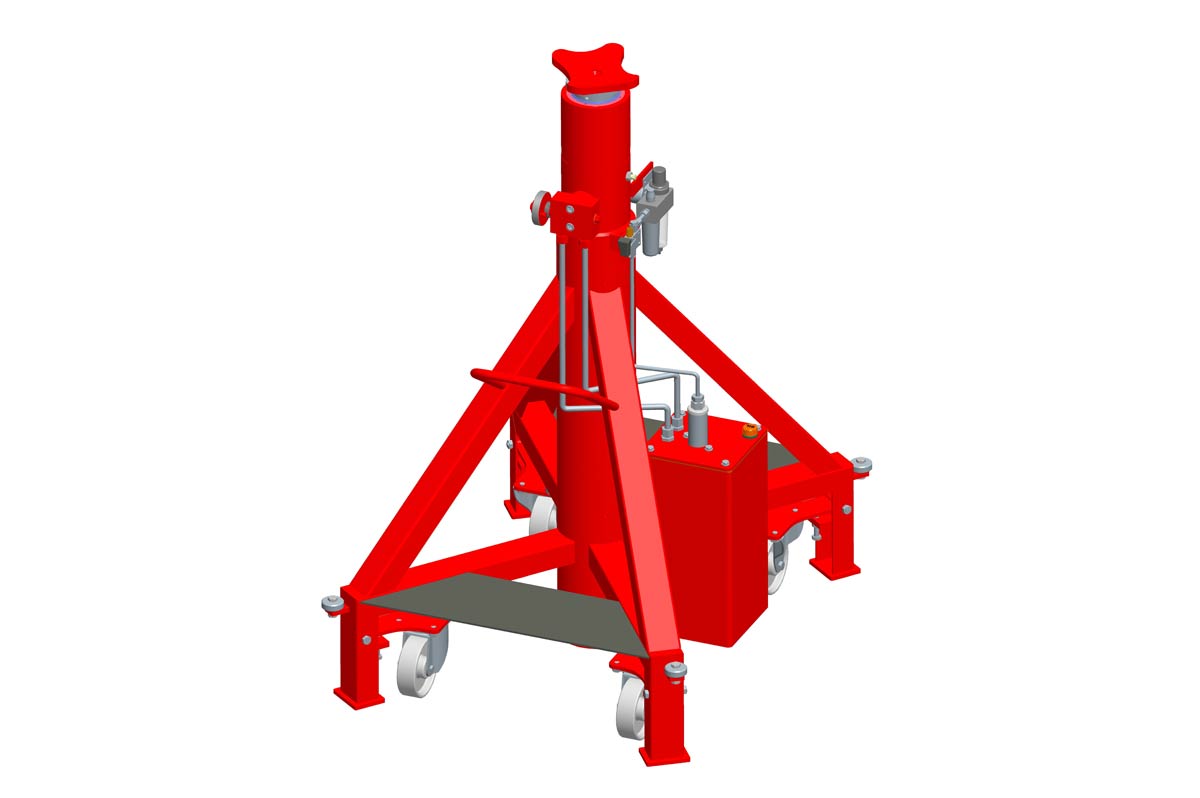

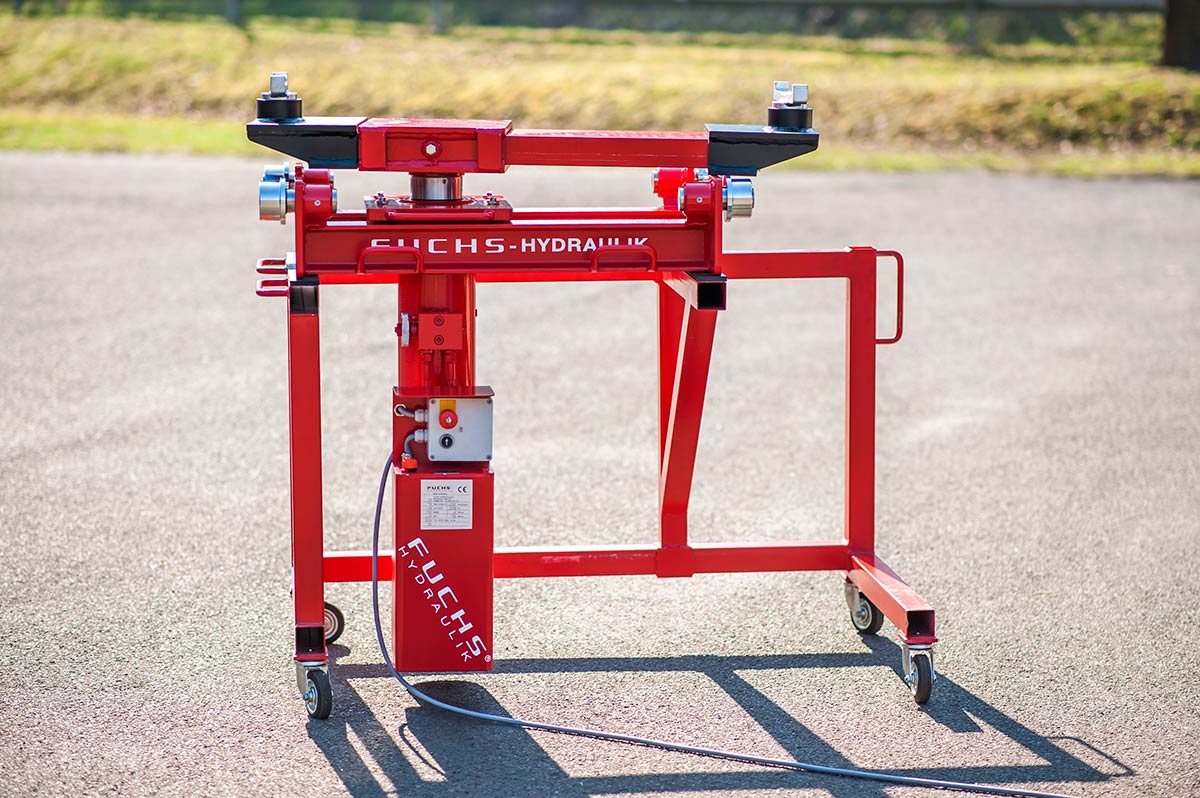

Mobile floor pit jack

TS 14000-L

Capacity 14t
Stroke 750mm
Piston Ø 90mm
Operation Air hydraulic
Chassis floor-running, freely-moveable, manufactured to pit height
Air connection 6-10bar
Scope of delivery incl. support brackets, 6m air hose w/connection
Art. No. 8.452.000

TS 14000-E

Capacity 14t
Stroke 750mm
Piston Ø 90mm
Operation Electro-hydraulic
Chassis floor-running, freely-moveable, manufactured to pit height
Electrical connection 400V
Scope of delivery incl. support brackets, 6m cable w/CEE Euro connection
Art. No. 8.452.004

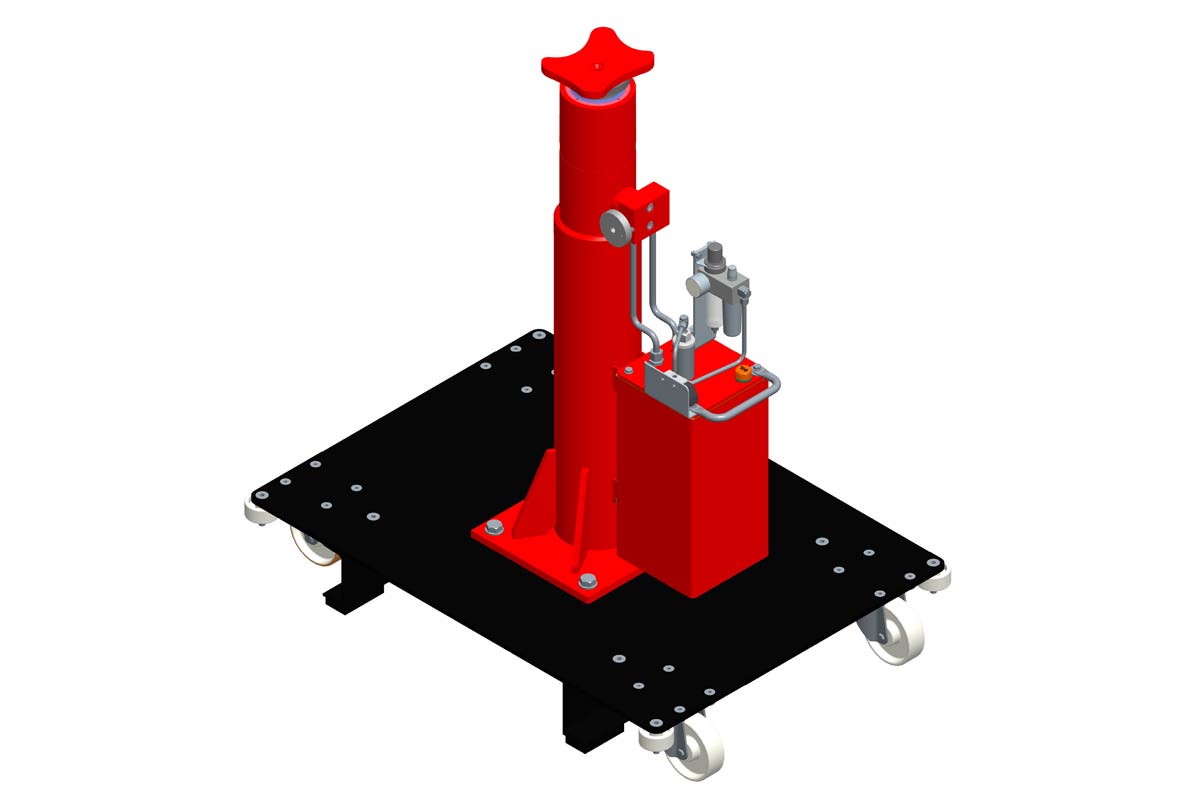

FVH 14000-L

Capacity 14t
Stroke 750mm
Piston Ø 90mm
Operation Air hydraulic
Chassis floor-running, freely-moveable, manufactured to pit height and width
Air connection 6-10bar
Scope of delivery incl. support brackets, 6m air hose w/connection
Art. No. 8.454.001

FVH 14000-E

Capacity 14t
Stroke 750mm
Piston Ø 90mm
Operation Electro-hydraulic
Chassis floor-running, freely-moveable, manufactured to pit height and width
Electrical connection 400V
Scope of delivery incl. support brackets, 6m cable w/CEE Euro connection
Art. No. 8.454.003

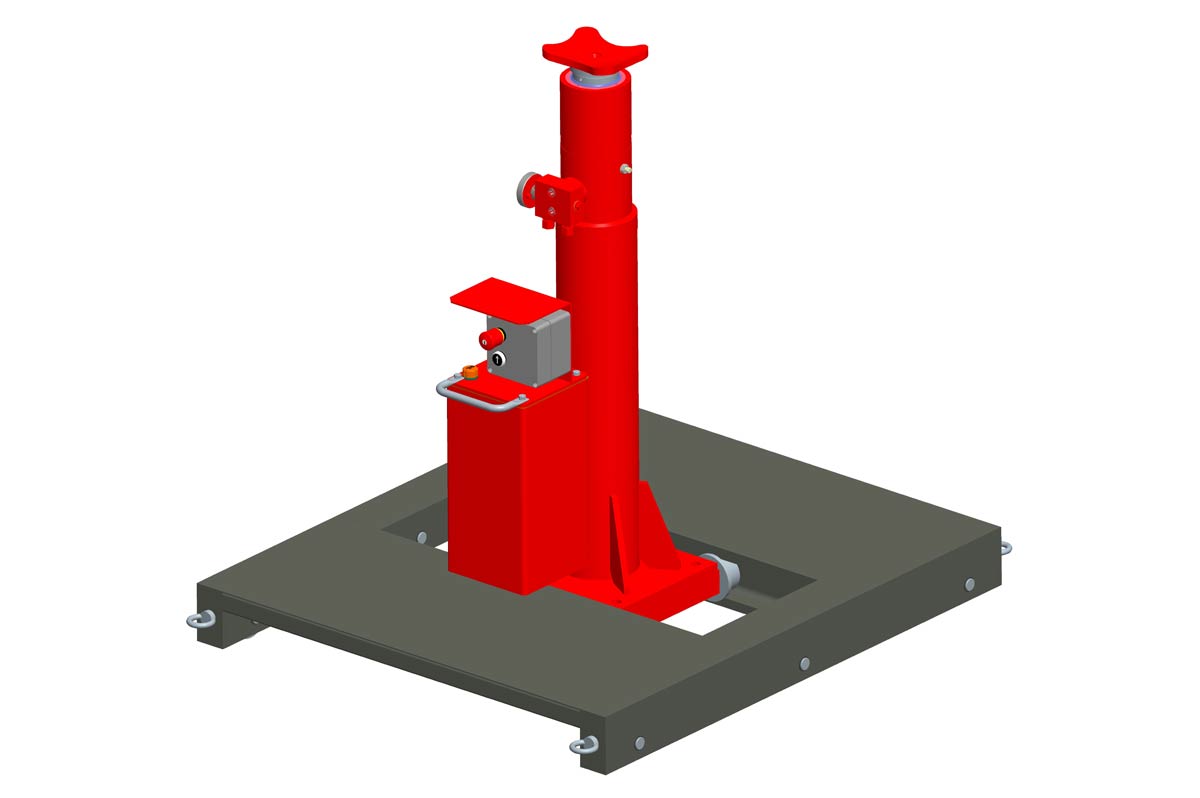

SGH 14000-L

Capacity 14t
Stroke 750mm
Piston Ø 90mm
Operation Air hydraulic
Chassis rail and floor mounted, manufactured to pit height and width
Air connection 6-10bar
Scope of delivery incl. support brackets, 6m air hose w/connection
Art. No. 8.454.002

SGH 14000-E

Capacity 14t
Stroke 750mm
Piston Ø 90mm
Operation Electro-hydraulic
Chassis rail and floor mounted, manufactured to pit height and width
Electrical connection 400V
Scope of delivery incl. support brackets, 6m cable w/CEE Euro connection
Art. No. 8.452.003
